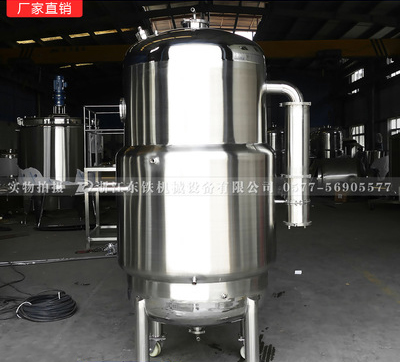

A fermentor, a device that is used industrially for microbial fermentation. Its main body is generally made of stainless steel with the main cylinder, the volume of 1m3 to hundreds of m3. In the design and processing should pay attention to the structure of rigorous and reasonable. Can withstand steam sterilization, have a certain operational flexibility, internal accessories to minimize (to avoid dead ends), material and energy transfer performance, and can be adjusted to facilitate cleaning, reduce pollution, suitable for a variety of products and reduce energy production Consumption.

Equipment use:

The fermentation tank structure for anaerobic fermentation (such as the production of alcohol, solvent) can be simpler. For the aerobic fermentation (such as the production of antibiotics, amino acids, organic acids, vitamins, etc.) of the fermentation tank due to the need for continuous access to a large number of sterile air tank, and to consider the use of access to air, so the structure of the fermentation tank Complex, commonly used mechanical agitation, bubbling and air lift fermentation tank.

Dairy products, alcohol fermentation process is a sterile, non-polluting process, fermentation tank with a sterile system to avoid and prevent the pollution of microorganisms in the air, greatly extending the shelf life of the product and the product of pure, Designed to install a sterile breathing stomata or a sterile positive pressure fermentation system. The tank is equipped with a milo plate or a labyrinth jacket, which can be heated or cooled by heating or cooling medium. Fermentor capacity from 300-15000L a variety of different specifications. Fermentors according to the scope of use can be divided into small laboratory fermentation tank, pilot production fermentation tank, large fermentation tank.

Fermentor is widely used in dairy products, beverages, bio-engineering, pharmaceutical, fine chemicals and other industries, the tank with sandwich, insulation layer, can be heated, cooling, insulation. The tank and the upper and lower filling heads (or tapered) are machined with the spinning angle R, the inner wall of the tank is polished by mirror, no sanitary dead ends, and the fully enclosed design ensures that the material is always mixed and fermented without fermentation. Air breathing holes, CIP cleaning nozzle, manhole and other devices.

Fermentor classification: According to the fermentation tank equipment, divided into mechanical mixing ventilation tank and non-mechanical mixing ventilation fermentation tank;

In accordance with the needs of microbial growth and metabolism, divided into good gas fermentation tank and anaerobic fermentation irrigation.

Fermentor is a kind of equipment for mechanical stirring and fermentation equipment. The device uses the internal circulation method, with the stirring blade to disperse and break the bubble, it dissolves oxygen rate is high, the mixing effect is good. The tank is made of SUS304 or 316L stainless steel, the tank is equipped with automatic spray cleaning head to ensure that the production process in line with GMP requirements.
